Model Number: Barfield CT12A

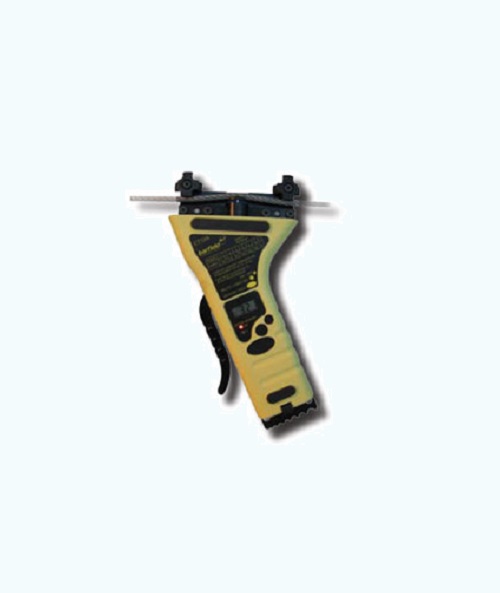

Barfield CT12A Cable Tensiometer
Cable Tensiometer
Aero Express is an Authorized Distributor for the CT12A Test Set.
To view click here: ⊗Standard Warranty Policy ⊗Barfield CT12A Data Sheet ⊗Barfield CT12A Operation Manual
Aero Express will buy, sell and trade the CT12A depending on your needs. The Barfield CT12A Digital Cable Tensiometer was designed to meet the industry’s requirements for testing and measuring the tension of aircraft cables. The CT12A measures the existing tension in 1/16” to 1/4” cables. Two different unit types are available within the product line: multi-cable and single-cable. Multi-cable units can measure up to seven different cable sizes; whereas single-cable units are customized for one specific cable size. The CT12A displays the battery life, last measured cable size, ambient temperature and cable tension.
Features:
- Meets new OEM specifications
- 10-year useful life span
- Rechargeable battery
- 4-character digital display
- Cable gauge included
- Rugged ergonomic design
- No conversion table required
- 1-year calibration cycle
- High accuracy
- Simple 3 button operation
- Higher tension measurements
- 25 to 1000 pound range (US Standard)
- Ambient temperature reading
- Ten (10) minute automatic shutoff feature
- Available as single cable fixed riser or multi-cable riser
- Calibration bar included
1-Year Factory Barfield Warranty on all new products.
