Model Number: IFR STD7000

Request for Quote

    PurchaseRentalSellingCalibration

    ARINC Bus Controller

    To view click here: Standard Warranty Policy  Operation Manual

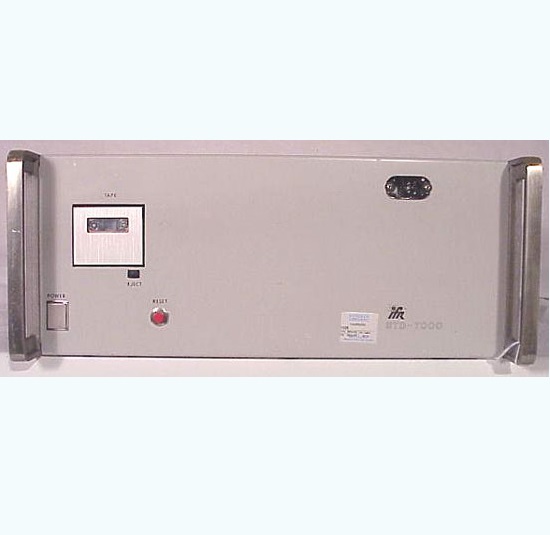

    Aero Express will buy, sell and trade the depending on your needs.  The Standard Digital Interface System (SDIS) is comprised of the STD-7000 Bus Controller and Operator Terminal (CRT Display, CRT Interface and Numeric Keypad).

    Features:

    • Programmable ARINC bus controller designed to control serial bus communications within ARINC 700 series avionics test System
    • Six programmable high/low speed ARINC 429 I/O buses and three (3) programmable very high speed ARINC 453 I/O buses
    • One IFR I/O bus used for interface of auxiliary IFR test equipment
    • One IEEE Standard 488-1978 bus for interface of an external ATE Controller

    90-Day Warranty

    Calibration:

    Express Calibration is an Authorized ISO-17025 Calibration and Repair shop for the IFR/Aeroflex STD-7000.  Visit www.expresscal.com for full capabilities.

    All units will be sold with a current calibration certificate. If factory new, a manufacturer’s Certificate of Conformance (C of C) will be provided.

    Since its inception, Express Calibration Services has supported Aero Express’ endeavors in providing test equipment support services.

    They perform calibrations for General Aviation, Corporate Aviation, OEMs, FAA Repair Stations, Military, as well as Regional and Air Transport Airlines. Express Calibration Services offers their services when you have a requirement for calibration or repair of your test equipment
